Rear Left Or Right Roof Pillar

51 43 251 Removing And Installing Or Replacing Trim Panel From Rear Left Or Right Roof Pillar







WARNING: Follow safety instructions for working on cars with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim panel (risk of damage to head airbag).







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

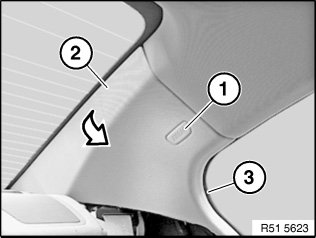

Lift out protective cap (1) with plastic wedge.
Release screw underneath.
Tightening torque 51 43 2AZ.
Remove trim panel (2).

Installation note:
Make sure trim panel (2) is correctly seated in edge protection (3).







Installation note:

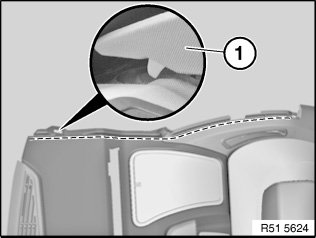

Make sure guide lug of cover (1) is correctly seated in rear storage shelf.

Make sure trim panel (1) is correctly seated in groove of rear storage shelf and belt cover.
