Pillar Trim Panel

51 43 230 Removing And Installing / Replacing Trim On C-pillar At Bottom Left Or Right







Necessary preliminary tasks:
- Remove belt outlet trim
- Remove entrance cover strip
- Remove backrest

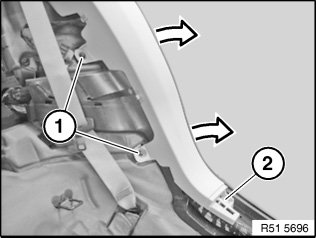

Release plastic nuts (1).







Release plastic nuts (1).
Lever out clip (2).
Unclip trim.

Installation:
If necessary, replace faulty clip and retainers on trim.
Make sure trim is correctly seated in seal.
