All Luggage Compartment Trims (Without Ski Bag)

51 47 243 - Removing and installing/replacing all luggage compartment trims (without ski bag)





Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim on left .
- Remove right luggage compartment wheel arch trim

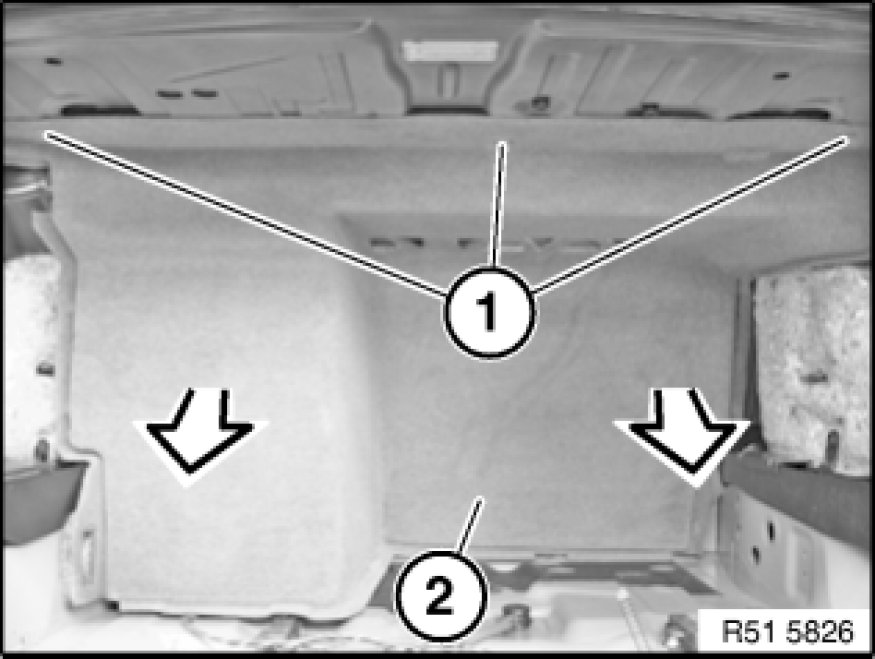

Lever out expansion rivets (1).
Feed out cover for luggage compartment separating wall (2).
