51 16 355 Removing and Installing/Replacing Driver's Side Hinged Compartment

51 16 355 Removing And Installing/Replacing Driver's Side Hinged Compartment







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

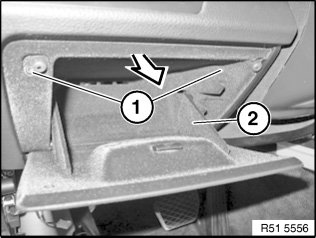

Release screws (1).
Tightening torque 51 45 6AZ.
Remove fold-down compartment on driver's side (2) in direction of arrow while unclipping or detaching at the bottom







Installation:
Make sure driver's side hinged compartment (2) is correctly seated.

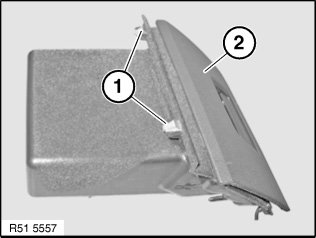

In F01/02/03 only:
- Replace defective retainers (1).

Replacement
In F01/02/03 only:
- Modify clamps (1).

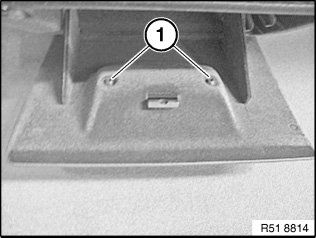

In F01/02/03 only:
Release screws (1) and fit handle on fold-down compartment.
Tightening torque 51 45 7AZ.
