51 16 ... Removing and Installing/Replacing Side Trim Panels on Centre Console on Left or Right

51 16 ... Removing And Installing/Replacing Side Trim Panels On Centre Console On Left Or Right

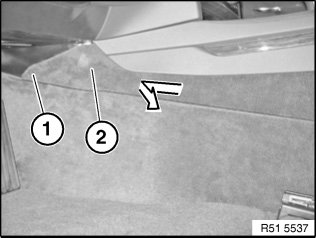

Release screw (1).
Slide trim panel (2) in direction of arrow and remove.







Installation note:

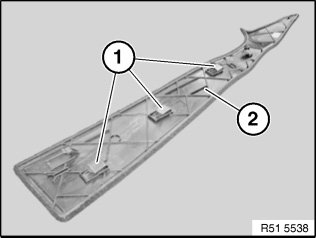

Retainers (1) must be correctly seated in panel guides (2).

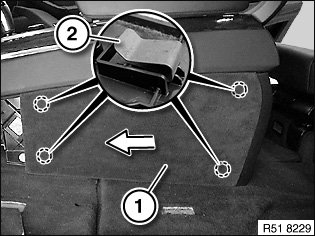

Feed side carpet (1) towards front out of centre console.

Installation note:
Replace faulty retainers (2).
