51 47 315 Removing and Installing/Replacing Front Carpet for Passenger Compartment

51 47 315 Removing And Installing/Replacing Front Carpet For Passenger Compartment







Necessary preliminary work:
- Remove heating and air-conditioning unit
- Remove both front seats
- Remove complete accelerator pedal module

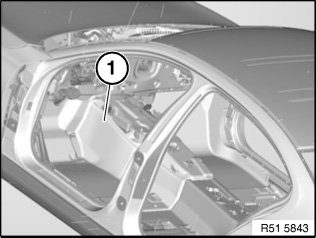

Remove front floor trim panel (1) towards rear/top and if necessary feed out cable.







Installation note:

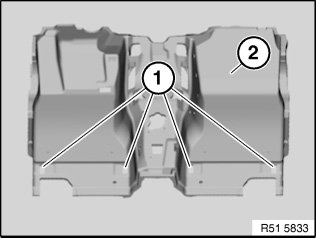

Apertures (1) serve as fixing points when fitting the front floor trim panel (2).
