51 71 ... Removing and Installing/Replacing (Front) Left or Right Suspension Crossbrace

51 71 ... Removing And Installing/Replacing (Front) Left Or Right Suspension Crossbrace

Special tools required:







IMPORTANT:
- Driving without the suspension crossbrace is not permitted. (risk of damage to the body).
- Tighten screw on suspension crossbrace to torque. Then tighten to angle of rotation, special tool 00 9 120.

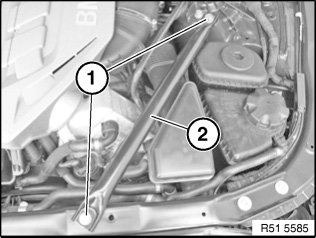

Release screws (1).
Tightening torque 51 61 1AZ and 2AZ.
Remove suspension cross-brace (2).

Installation:
Make sure suspension cross-brace (2) is in correct installation position. Screw with washer is fitted at connection, front top.
