51 24 133 Removing and Installing/Replacing Drive For Soft Close Automatic on Rear Lid (Top) (Soft Closure Aid)

51 24 133 Removing And Installing/Replacing Automatic Soft Close Drive On Rear Lid (Automatic Soft Closing)

Necessary preliminary work:
- Remove trim for rear lid

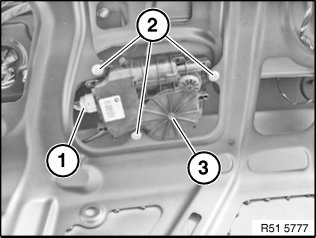

Disconnect plug connection (1).
Release screws (2) and feed out drive (3).
Tightening torque 51 24 4AZ.

Feed Bowden cable out of rear lid lock.

Installation note:

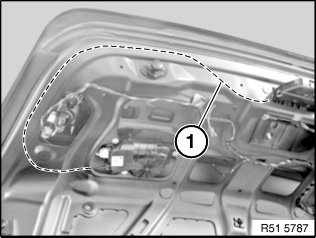

Make sure Bowden cable (1) is correctly positioned in rear lid.
Lay Bowden cable (1) without kinks.
