Removing And Installing / Replacing Left Or Right Hinge For Rear Lid

41 62 050 - Removing and installing / replacing left or right hinge for rear lid





Read contents of Body, General.
Carry over schematic representation to the relevant vehicle type.

Necessary preliminary tasks:
- Remove rear lid Service and Repair
- Remove tension spring/spindle drive
- Remove panel for parcel shelf
- Remove luggage compartment wheel arch trim

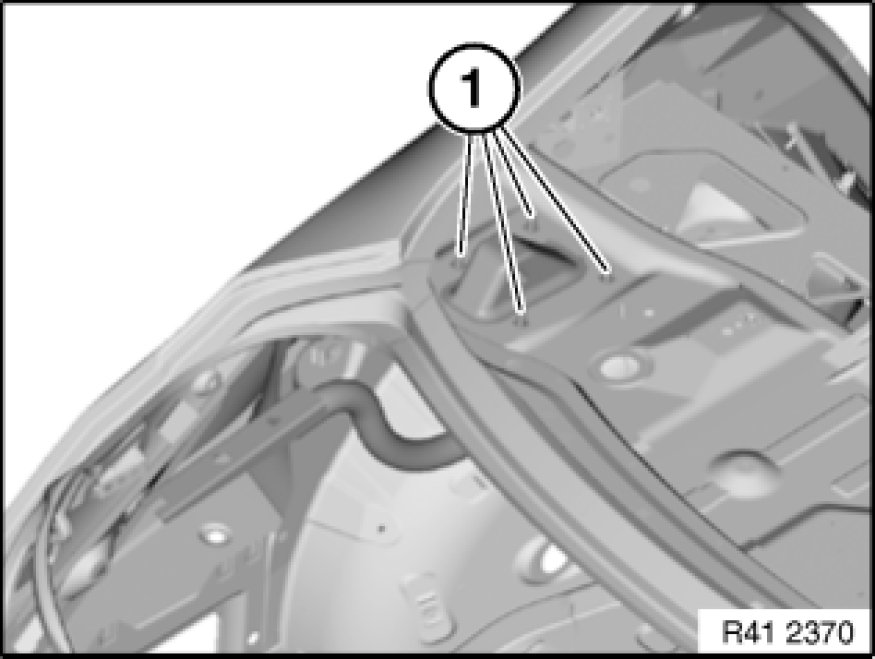

Open screw connections (1) on car.
Remove hinge.

Installation:
Tightening torque 41 62 2AZ [1][2]41 62 Rear Lid.
Adjust Adjustments hinge together with rear lid.
