Front Door Limiter: Service and Repair

51 21 280 Removing And Installing/Replacing Door Stop On Left Or Right Front Door







Necessary preliminary tasks:
- Remove acoustic insulation

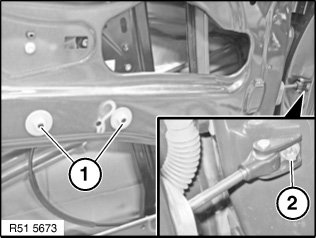

Release nuts (1) and remove washers.
Tightening torque 51 21 4AZ.
Release screw (2).
Tightening torque 51 21 3AZ.
Feed out door brake towards bottom.
