51 11 773 Replacing Front Lower Deformation Element

51 11 773 Replacing Front Lower Left Or Right Deformation Element







Necessary preliminary tasks:
- Remove carrier for bumper trim at front bottom

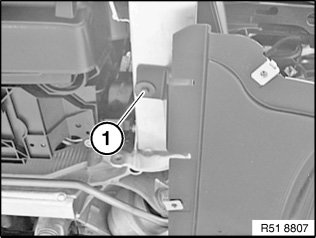

Partially detach front engine undercover and remove screw (1) from bottom cover.







Release screws (2) on brake air duct (1).
Remove brake air duct (1) in direction of arrow.







Release screws (1) on vertical connection (2).
Tightening torque 51 11 2AZ.







Release bolt (1) on front axle support adapter plate (2).
Tightening torque 51 11 6AZ.
Remove deformation element (3).

,��/:
