51 11 050 Removing and Installing/Replacing Carrier For Front Bumper Trim

51 11 050 Removing And Installing/Renewing Carrier For Front Bumper Trim







Necessary preliminary tasks:
- Remove front bumper trim
- Remove fanfare horn on left and right

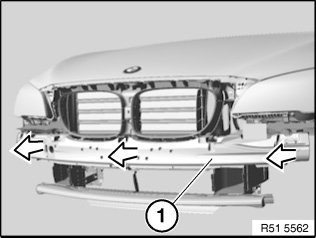

Remove impact absorber (1) towards front.

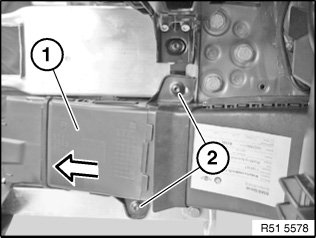

Release screws (2) on brake air duct (1).
Remove brake air duct (1) in direction of arrow.







If ACC optional extra is installed:

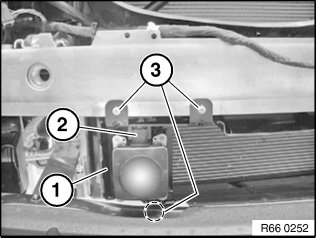

Release screws (3) on ACC sensor bracket (1).
Tightening torque: 66 31 1AZ.
Unfasten plug connection (2) and disconnect.
Remove ACC sensor bracket (1).

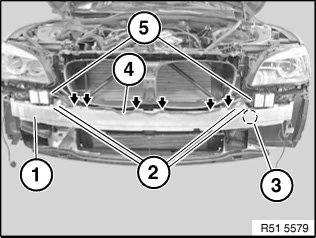

Unfasten screws (2).
Tightening torque: 51 11 4AZ.
Unclip wiring harness (4) at marked points.
If necessary, unlock and disconnect plug connections (5) on short-range sensors.
Remove carrier (1) towards front.

Installation:
Make sure locking sleeve (3) is correctly seated in carrier (1).







Replacement (depending on version):
- Remove short-range sensor bracket.

,��/:
