65 13 160 Removing and Installing/Replacing Rear Speaker Carrier (In Storage Shelf)

65 13 160 Removing And Installing/Replacing Rear Speaker Carrier (In Storage Shelf)

Special tools required:

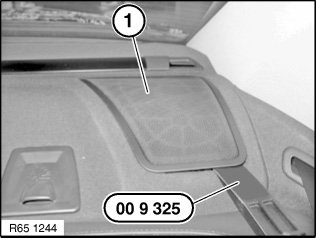

Lever out speaker cover (1) with special tool 00 9 325.







Installation note:

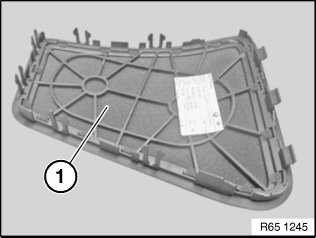

Retaining lugs on speaker cover (1) must not be damaged.

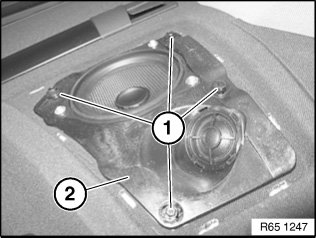

Release screws (1).
Take out speaker box (2).
Disconnect plug connection underneath and remove speaker box (2).

Installation note:
Speaker box (2) must be exactly seated in groove of storage shelf.
