61 31 321 Removing and Installing/Replacing Radio and A/C Control Panel

61 31 321 Removing And Installing Radio And A/C Control Panel

Special tools required:







IMPORTANT: Risk of damage.

A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESP protection).







IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.







Necessary preliminary tasks:
- Remove decorative strip on dashboard in middle







NOTE: Picture for example purposes only.

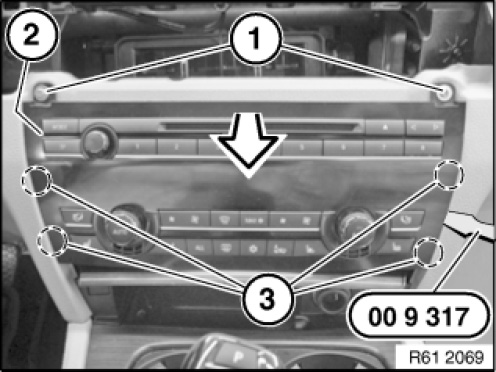

Release screws (1).
Carefully lever out radio and A/C control panel (2) with special tool 00 9 317 at points (3) in direction of arrow.

IMPORTANT: Assign keypad depending on optional equipment.

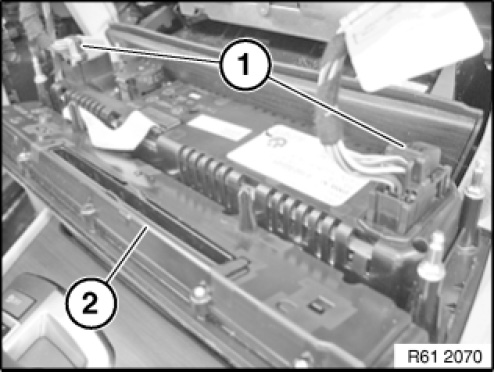

Unlock plug connections (1) and disconnect.
Remove radio and A/C control panel (2).
