51 31 011 Replace Windscreen

51 31 011 Replace Windscreen







Special tools required:
- 51 0 010







IMPORTANT:
The following notes form the basis for these repair instructions and must be adhered to at all times:
- Notes on window bonding
- General procedure for dismantling/installation of affixed window glass







Removal is performed with Roll Out 2000.

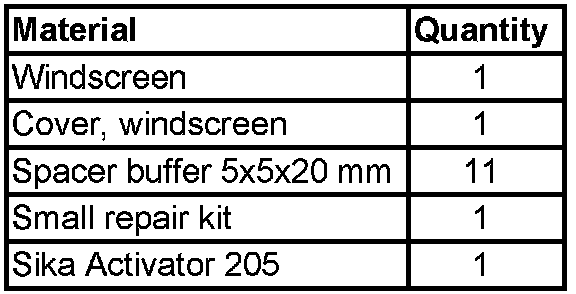

The following new parts / consumables are required (sourcing reference BMW Parts Department).












Necessary preliminary work:
- Remove inside mirror
- Remove trim panels for roof pillar at front
- Remove cowl panel cover
- Remove roof trim strips

Depending on version:
- Remove camera for lane departure warning
- Remove the rain/light/solar and condensation sensor and immediately install on a new windscreen or a new sensor







Tape off body in area of piercing point with fabric adhesive tape.

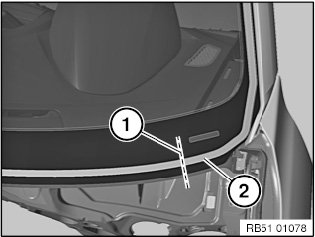

Push wire from Roll Out 2000 along line (1) through adhesive bead (2).
For details on how to proceed, refer to: Window Removal with "Roll Out 2000".
Lift out windscreen with suction cup.

Spacer buffer:












To prevent windscreen breakage and wind noise, completely remove any remnants of removed spacer buffers and maintain the installation position exactly.

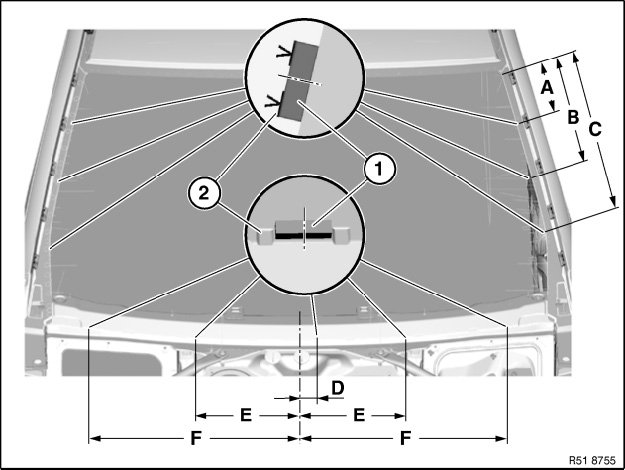

Installation position of spacer buffers (1) is specified on body side with markings (2).

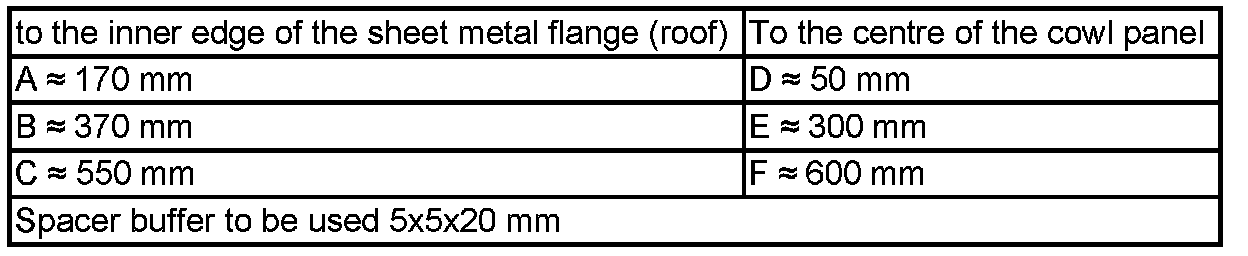

Installation dimensions:

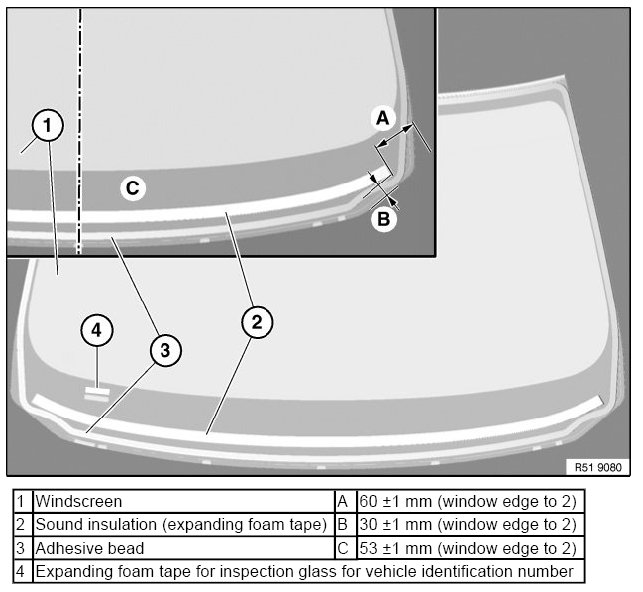

Sound insulation cowl panel







Observe notes on component-bonding with adhesive tape.
Renew resilient sealing tape for vehicle identification number inspection glass on windscreen.







Install the cover / rubber frame (1) for the windscreen.

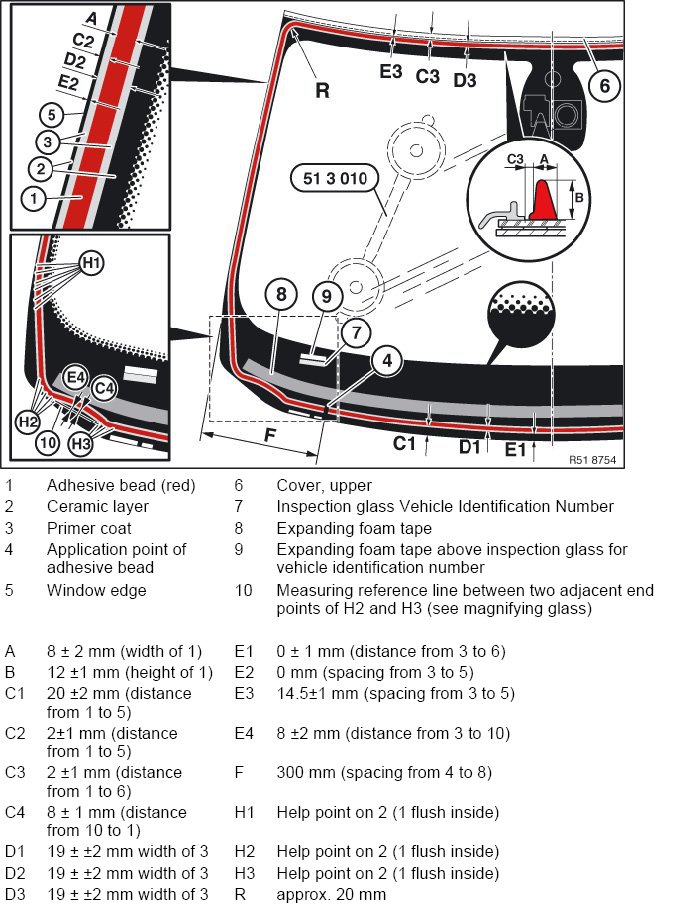

Overview of windscreen bonding:

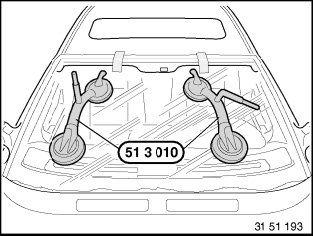

Perform the following steps carefully on the windscreen using siphon (51 3 010):
- Insert between engine compartment lid and cowl panel
- Position windscreen at top
- Align sides evenly
- Insert at bottom and press down
- Press windscreen upwards until seal is uniformly contacting roof ≥ 6 mm gap dimension from window edge to roof edge
- Secure windscreen in this position with plastic adhesive tapes







Preload on top of windscreen (prevention of wind noise):

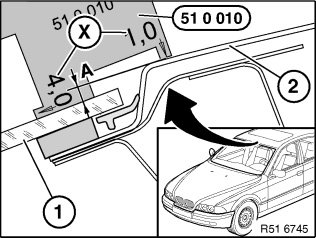

In order to avoid wind noises, windscreen (1) must be lower than roof outer skin (2).
Position special tool 51 0 010 in middle of vehicle depending on measurement (A) and check underprotrusion of windscreen (1).
A = 3.5 ± 1 mm without HUD
A = 3.3 ± 1 mm with HUD
A = 2.9 ± 1 mm with HUD and IR
X = Measuring levels on the special tool (1...4 mm)







Version with HUD only:
Check HUD functions again and if necessary adjust.







Only with camera-based driver support systems:
Carry out camera calibration via diagnosis system.
Under Service Functions menu:
- Body
- Lane departure warning
- Calibrate camera
