51 37 000 Removing and Installing / Replacing Complete Rear Left or Right Power Window Unit



51 37 000 Removing And Installing / Replacing Complete Rear Left Or Right Power Window Unit







WARNING:
- Danger of injury.
- Carry out work on the power window regulator only when the power window motor is de-energized.







Necessary preliminary tasks:
- Remove rear side window glass

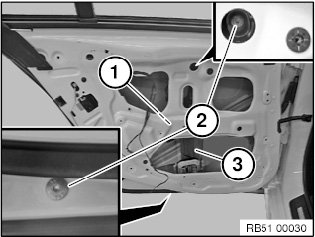

Slacken bolt (1).
Tightening torque 51 35 11AZ.

Installation note:
Holder (2) must be correctly seated on inner door panel rail.







Unfasten screws (2).

Tightening torque 51 35 2AZ.

Unplug connector (1) from flat motor.

Manoeuvre out power window regulator (3).







Finishing tasks:
- Observe notes on initialising power window regulator

Replacement:
Swap over flat motor for power window regulator.
