51 34 191 Replacing Left or Right Fixed Door Window In Rear Window Frame



51 34 191 Replacing Left Or Right Fixed Door Window In Rear Window Frame







Necessary preliminary tasks:
- Remove cover on door window frame
- Remove inner window cavity cover strip
- Remove side window

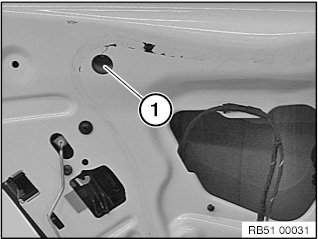

Release screw (1).

Tightening torque 51 35 13AZ.

Installation note:
If necessary, apply new butyl in area of threaded fastener (1) between fixed door window glass and window frame.







Release screw (1).

Tightening torque: 51 35 3AZ.

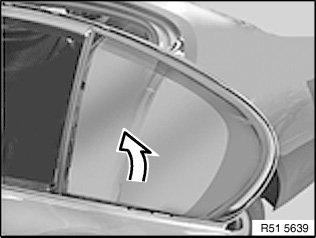

Work window frame forward at the bottom and clear of frame trim.

Tilt window frame slightly out and carefully lift it clear.

Installation note:
To facilitate installation, wet rubber parts of window frame with water. Work window frame into correct position behind retaining clips of frame trim.
