35 31 000 Removing and Installing or Replacing Clutch Pedal

35 31 000 Removing And Installing Or Replacing Clutch Pedal







Necessary preliminary work:
- Remove bearing support

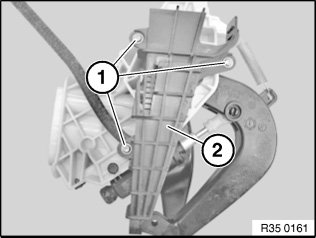

Release screws (1) and disassemble holder for control units (2).







Depending on equipment specification:

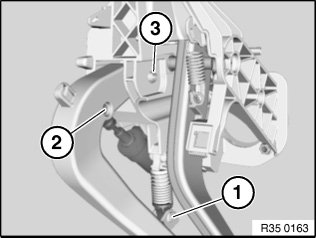

- Lift out retaining clip (1) and detach over-centre helper spring.
- Disconnect return spring.

Press out bolt (2).

Press out bolt (3) and remove clutch pedal.

Installation note:

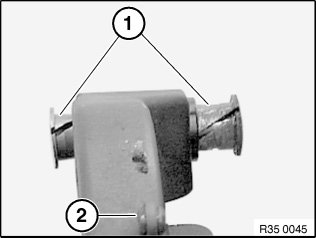

Replace pin.







Installation note:
Check bearing bushes (1) and replace if necessary.

Lightly grease bearing bushes (1).
