Removal and Replacement

24 50 021 Replacing Emergency Release







Releasing the transmission emergency lock from passenger compartment is not required starting from production date 06/2010.

NOTE: Releasing the transmission lock under the vehicle floor remains possible for towing purposes.







Necessary preliminary tasks:
- Remove complete centre console
- Remove rear underbody protection and holder on left







Release screw (2).
Remove cable (1).

Installation note:
Adjust gearshift lever.

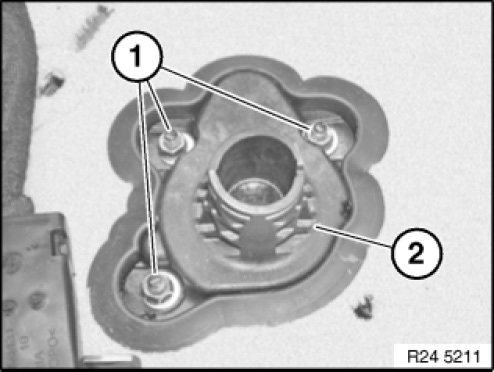

Release nuts (1) and remove emergency release (2) in upward direction.
