72 11 097 Removing and Installing/Replacing Rear Centre Lower Strap Fitting

72 11 097 Removing And Installing/replacing Rear Centre Lower Strap







Necessary preliminary tasks:
- Remove rear seat

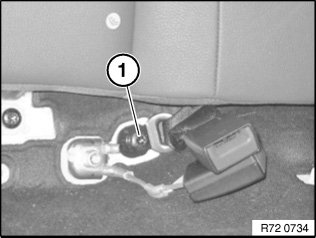

Release screw (1).
Tightening torque 72 11 22AZ.
If necessary, release plug connection for acoustic seat belt warning and disconnect.
Remove lower strap.

Installation note:
Lower strap fitting is coded to prevent incorrect assembly.
