72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 Removing And Installing Or Replacing Rear Left Or Right Seat Belts







Necessary preliminary tasks:
- Remove panel for rear window shelf







Removing left or right automatic reel:

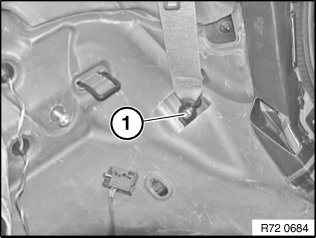

Release screw (1).
Tightening torque 72 11 21AZ.

Installation:
End fitting is coded against incorrect assembly.

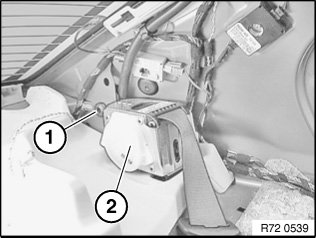

Release screw (1).
Tightening torque 72 11 20AZ.
Remove automatic reel (2) with anchor fitting.







Installation:
Pay attention to coding.

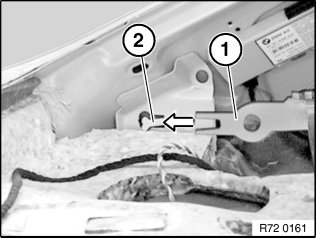

Push inertia reel unit (1) onto body lug (2).
