72 11 071 Removing and Installing/Replacing Front Lower Belt Fitting (Belt Tensioner), Passenger Seat

72 11 071 Removing And Installing/replacing Front Lower Belt Fitting (belt Tensioner), Passenger Seat







Necessary preliminary tasks:
- Remove front passenger seat







Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

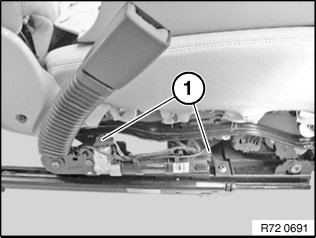

Unlock and disconnect plug connections (1).

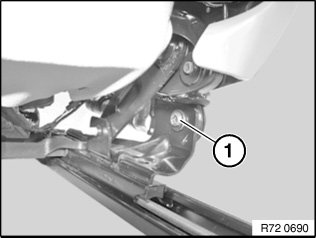

Release screw (1).

Installation:
Replace screw (1).

Tightening torque 72 11 03AZ.
Remove seat belt tensioner.

Installation:
Belt tensioner is coded against incorrect installation.
