32 41 445 Replacing Return Line (From Cooler to Oil Reservoir)

32 41 445 Replacing return line (from cooler to oil reservoir)





Warning!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with seal plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary tasks:





^ Draw off and dispose of hydraulic fluid from fluid reservoir
^ Remove left charge air duct/pressure pipe

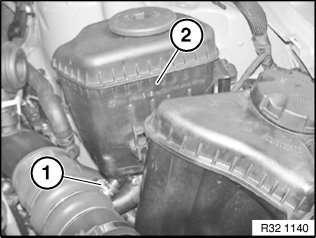

Release hose clamp (1) and detach cooler return line from fluid reservoir (2).

Installation note:
Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.





Expose cooler return line up to connection on power steering cooler.

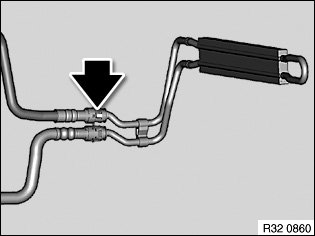

Release quick-release coupling and seal power steering cooler connection with a suitable plug.





Installation note:
Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.





After installation:
^ Carry out initial Dynamic Drive operation
^ Check line connections for leaks
