63 31 085 Removing and Installing/Replacing Luggage Compartment Lamp (on Rear Lid)
63 31 085 Removing And Installing/replacing Luggage Compartment Lamp (on Rear Lid)
IMPORTANT: Follow instructions for handling light bulbs (interior lights).

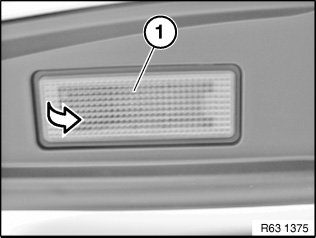

Lever out luggage compartment light (1) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment lamp (1).
Replacement:
- Remove bulbs.
- Note bulb type
