Tail Light Bulb: Service and Repair

63 99 312 Replacing Bulb(s) For Left Or Right Rear Light (Rear Lid)







IMPORTANT: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Remove socket housing for rear light

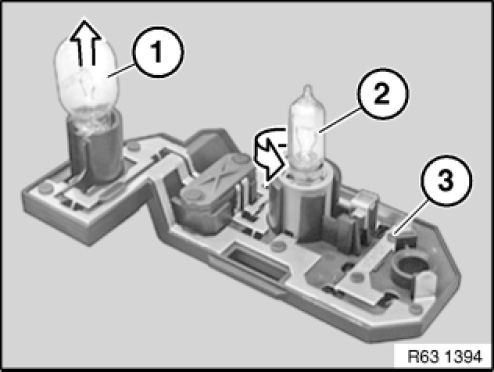

Pull bulb holder (1) or bulb holder (2) out of socket housing (3) in direction of arrow and change corresponding bulb.

NOTE:
1. Bulb for reversing light
2. Bulb for rear fog light

Installation note:
Note bulb type.
