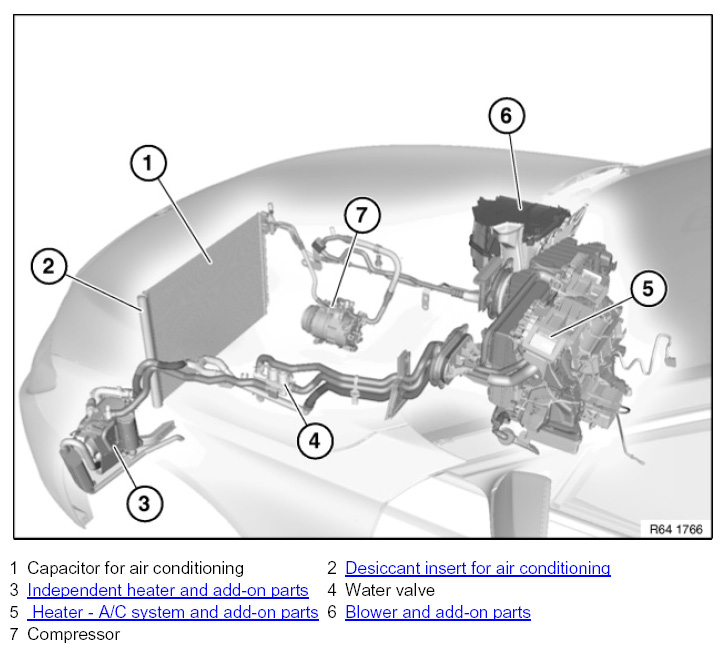

64 00 ... Overview of Heater - A/C System Components



64 00 .. Overview of heater - A/C system components
