64 12 089 Removing and Installing/Replacing Muffler/Silencer

64 12 089 Removing And Installing Or Replacing Muffler/silencer







Necessary preliminary work:
- Remove front underbody protection

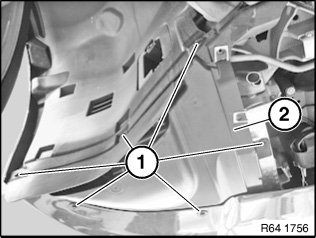

Release screws (1).
Remove left underbody cover (2).

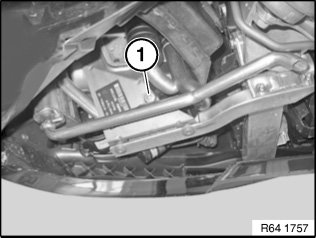

Unfasten screw (1)

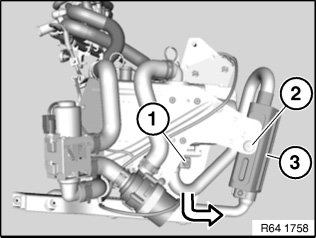

For purposes of clarity, picture shows component removed.
Release nut (1) and screw (2).
Remove muffler/silencer (3) in direction of arrow.







Replacement:
- Remove exhaust pipe
