Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N55)





Necessary preliminary work:
- Secure engine in installation position
- Remove rear underbody protection
- Remove right cover

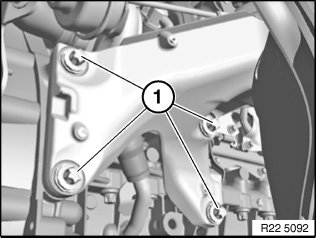

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ.
