535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Police / Special Vehicle Options
>>
Power Supply, Auxiliary Control Unit (SEC), Special Task Vehicle
>>

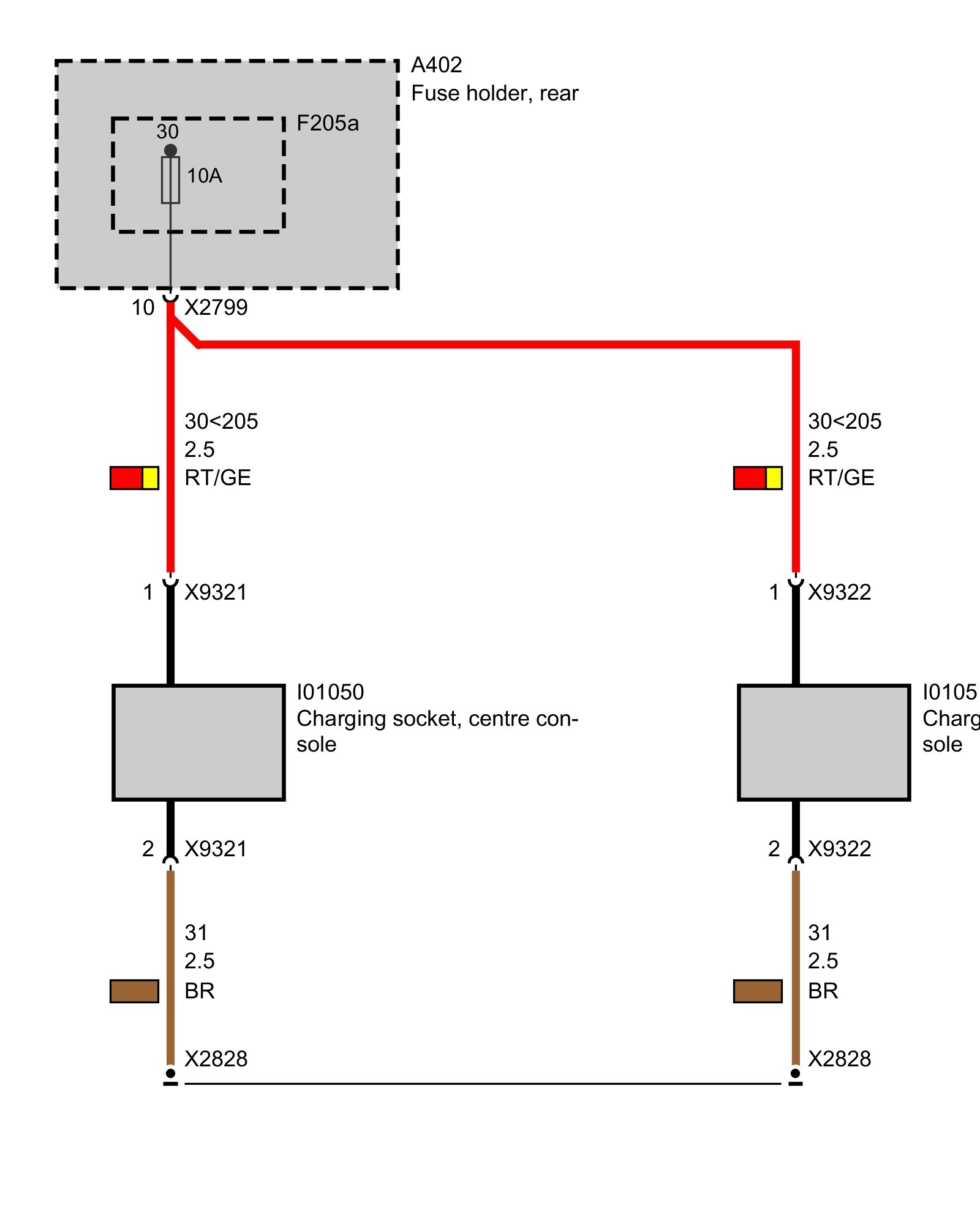

Charging Socket, Emergency Vehicle
Charging Socket, Emergency Vehicle
Charging Socket, Emergency Vehicle
