Home >> BMW >> 2011 >> 535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Police / Special Vehicle Options >> Headliner Module

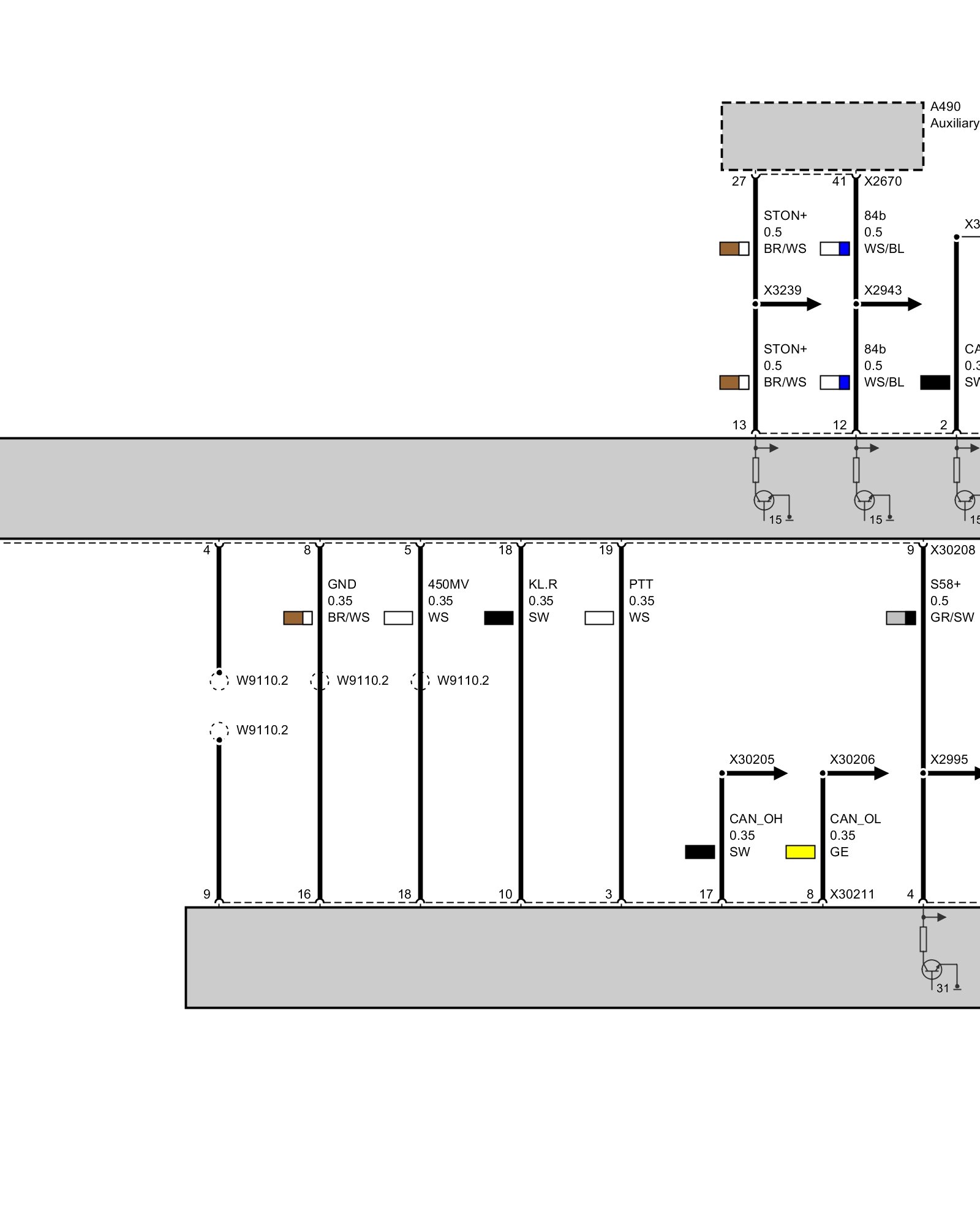

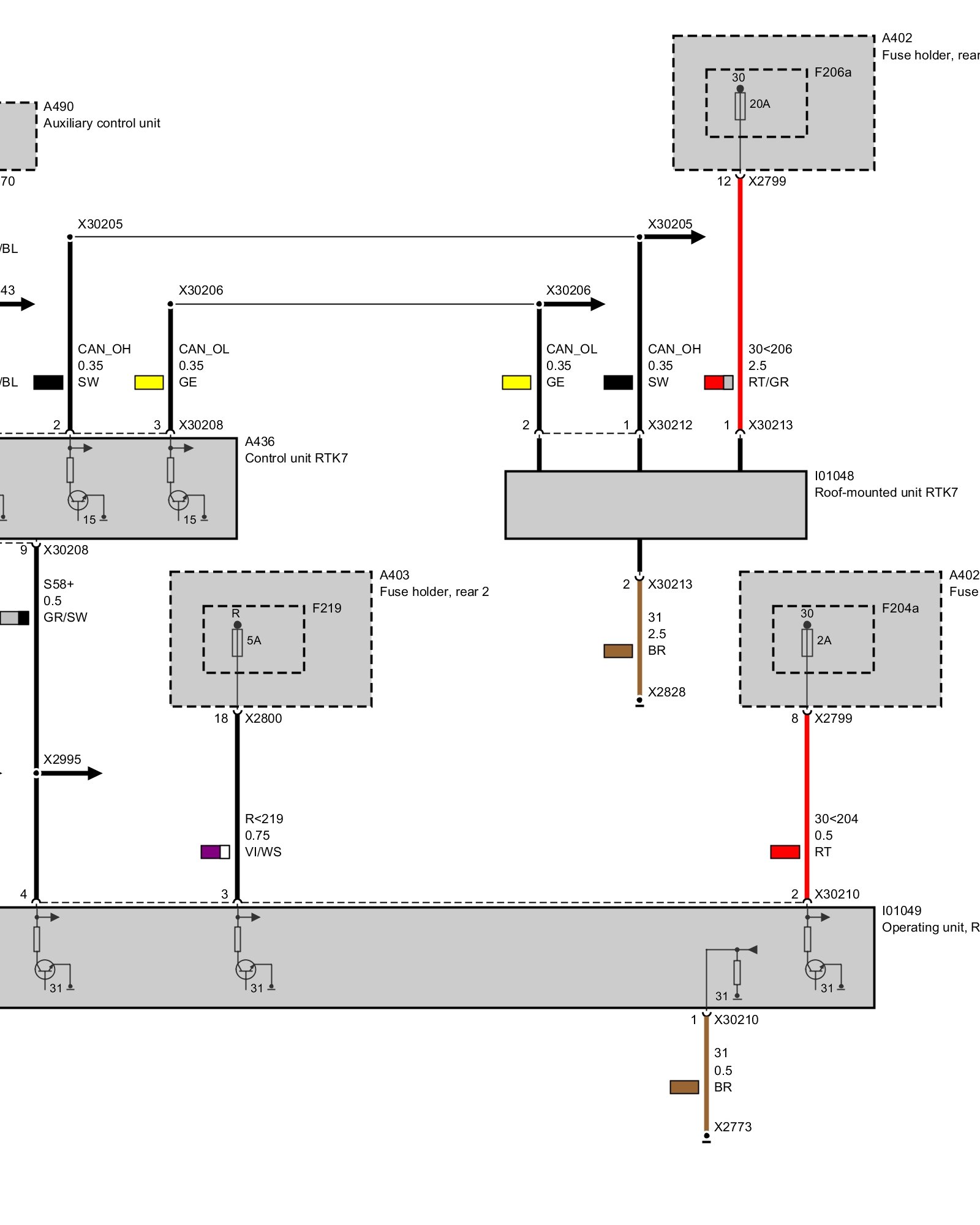

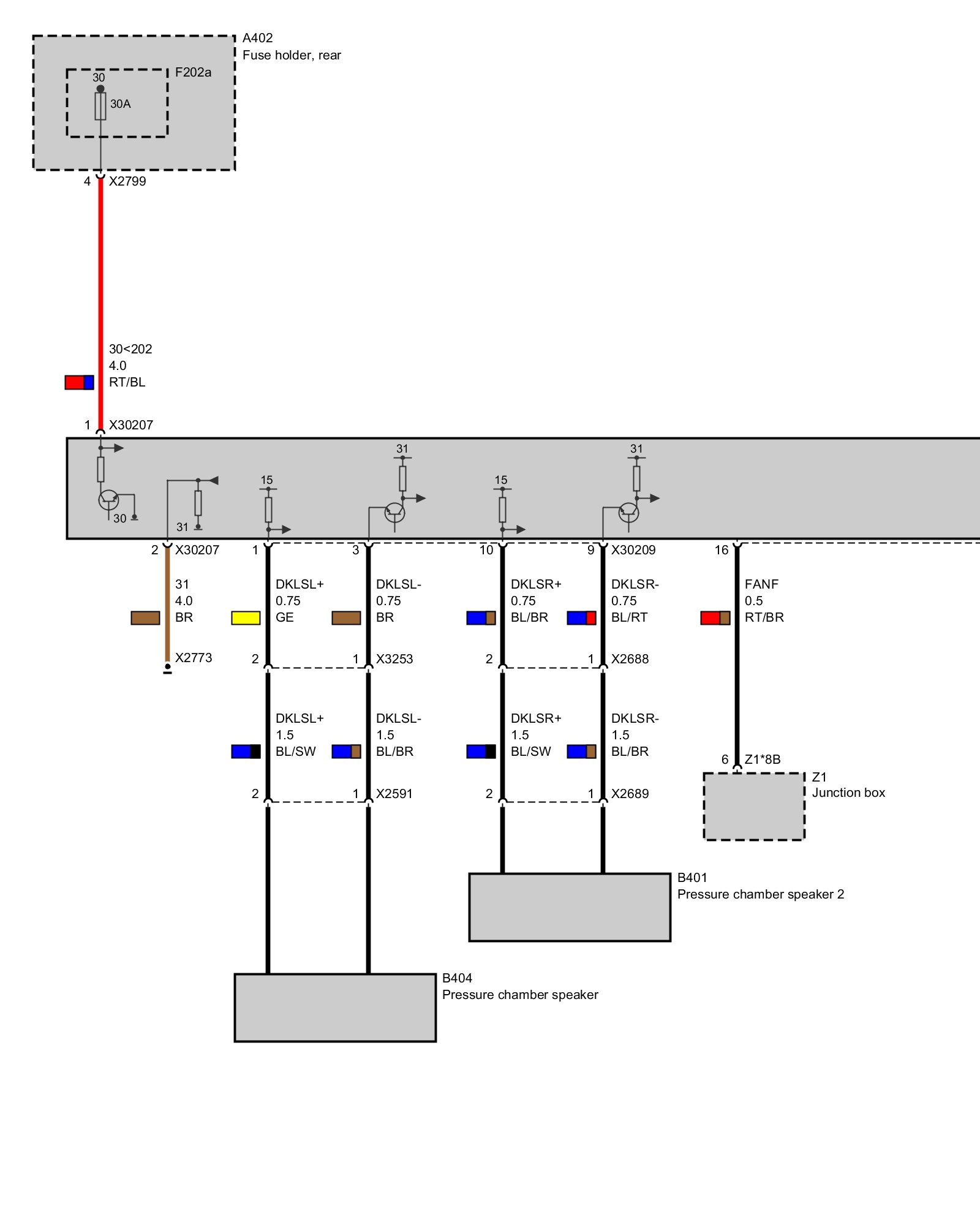

Headliner Module



RTK 7 With Operating Unit
