51 32 211 Replacing Front Left or Right Rubber Guide For Left or Right Door Window

51 32 211 Replacing Front Left Or Right Rubber Guide For Left Or Right Door Window







Necessary preliminary Work:
- Remove front side window
- Remove cover on window frame

IMPORTANT: Instructions for installation of rubber window seal are fundamental to this REP and must absolutely be complied with.

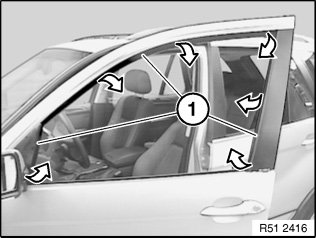

Pull rubber guide (1) completely out of front door.

Installation note:
Moisten rubber guide (1) prior to fitting with approved anti-friction agent.

Insert rubber guide at front/bottom into window guide rail.







Installation note:
Rubber guide (1) must not be damaged in corners (2).
