51 21 370 Removing and Installing/Replacing Cover (Seal) on Front Door At Bottom Left or Right



51 21 370 Removing And Installing/Replacing Cover (Seal) On Front Door At Bottom Left Or Right







Detach cover (1) downwards in direction of arrow from front door (2).

Installation:
Clip clips of cover (1) correctly into bores (3).

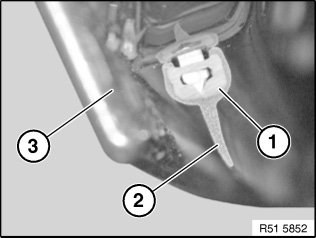

IMPORTANT:
- Note installation direction of cover (1).
- Curve of sealing lip (2) must point away from door frame (3).

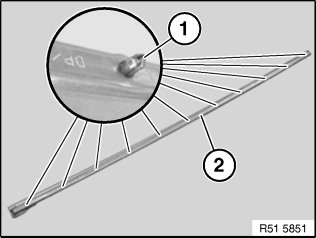

Installation:
Clips (1) of cover (2) must not be damaged.
