51 21 360 Replacing Seal For Door Seam/Roof Frame on Left or Right Front Door



51 21 360 Replacing Seal For Door Seam/Roof Frame On Left Or Right Front Door







Do not scratch or damage visible surfaces.







Lever out plastic rivet (3) at top rear.

Installation note:

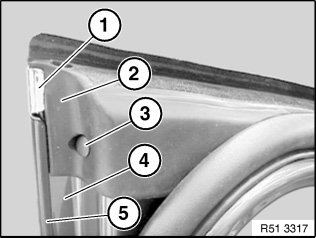

Correctly feed in seal (2) under frame trim (1) and window frame trim (5).

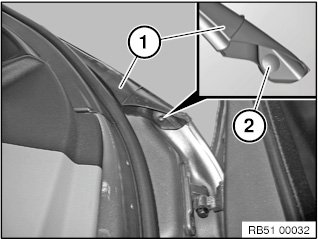

Lever out plastic rivet (2) on seal (1) at inside front.







Installation note:

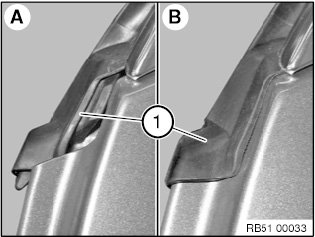

Feed in seal (1) at front again correctly under door edge aperture and feed in frame trim (A ->B).

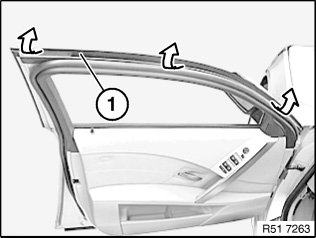

Lever out seal (1) from inside.
