52 26 412 Replacing Backrest Cover For Right Rear Seat (Through-Loading System)

52 26 412 Replacing Backrest Cover For Right Rear Seat (Through-Loading System)







Special tools required:
- 00 9 317
- 52 0 050







Necessary preliminary tasks:
- Remove right backrest
- Remove guide sleeves

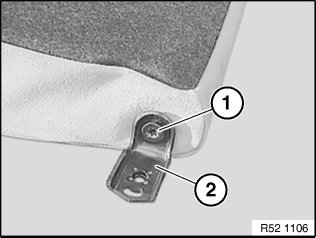

Release screw (1).

Tightening torque 52 26 02AZ.

Remove outer mount (2).

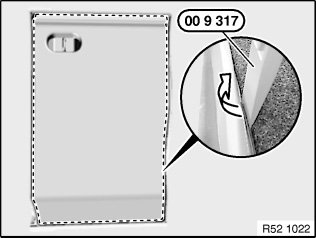

Lever out welt in the marked area from the backrest frame with special tool 00 9 317.

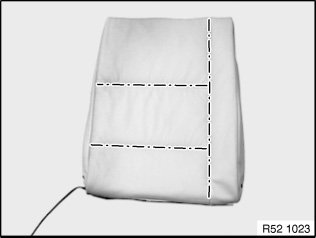

Remove backrest cover with padding from backrest frame.







Detaching cover and padding:

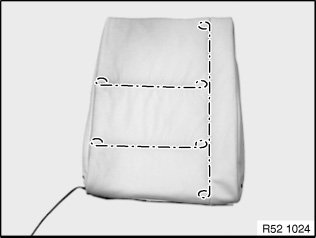

- Release all retainers in marked area
- Remove cover from padding
- Remove all remnants of retainers from cover and padding







Installation:

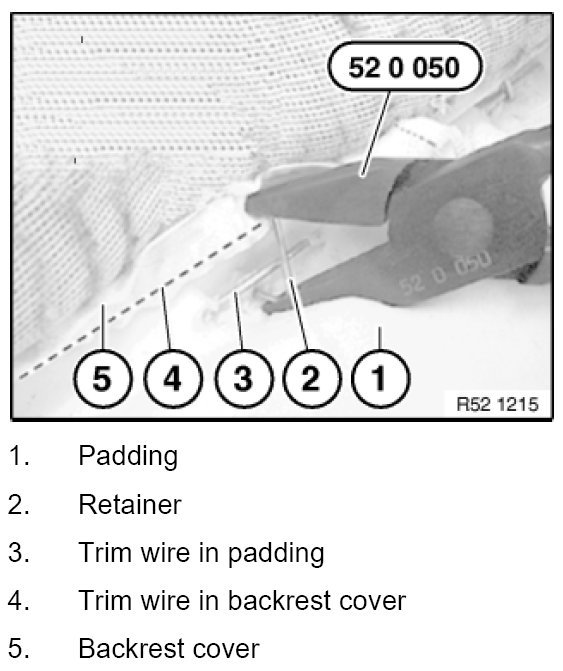

Insert new clamp (2) with special tool 52 0 050 and bend closed.







Replacing cover:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
