52 26 411 Replacing Backrest Cover For Rear Seat (Through-Loading System) On Left







Special tools required:
- 00 9 317
- 52 0 050







Necessary preliminary tasks:
- Remove left backrest
- Remove guide sleeves
- Remove Frame for ski bag







Release screw (1).

Tightening torque 52 26 02AZ.

Remove outer mount (2).







Lever cover with trim wire (1) out of metal claws (2) all round the opening for centre armrest.

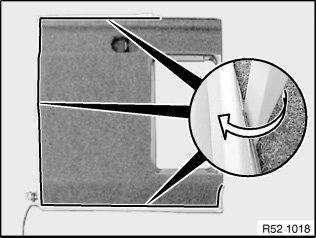

Lever out welt from backrest frame in the marked area with special tool 00 9 317.

Remove backrest cover with padding from backrest frame.

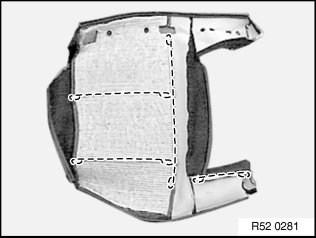

Detaching cover and padding:
- Release all retainers in marked area
- Remove cover from padding
- Remove remaining retainers from cover and padding







Installation:
Insert new clamp (2) with special tool 52 0 050 and bend closed.







Replacing cover:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
