52 26 200 Removing and Installing/Replacing Rear Panel on Right Rear Seat Back

52 26 200 Removing And Installing/Replacing Rear Panel On Right Rear Seat Back







Special tools required:
- 00 9 317







Necessary preliminary tasks:
- Tilt backrest forwards.

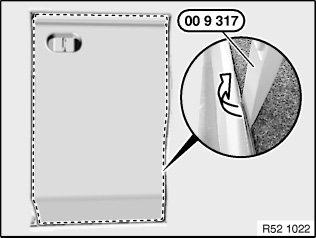

Lever out backrest cover welt from around the backrest frame with special tool 00 9 317.

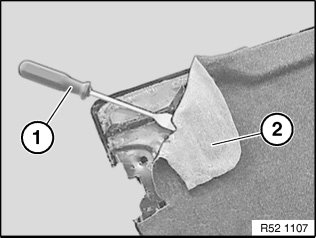

Detach rear panel (2) with flat scraper (1) from rear seat back.

Installation:
Comply with instructions issued by manufacturer of universal spray adhesive.

Apply universal spray adhesive to rear panel and rear seat back.

Fit and align rear panel within the air drying time (see manufacturer's instructions).

Observe and adhere to curing time to prevent rear panels from slipping.
