52 26 199 Removing and Installing/Replacing Rear Panel on Left Rear Seat Backrest



52 26 199 Removing And Installing/Replacing Rear Panel On Left Rear Seat Backrest







Special tools required:
- 00 9 317







Necessary preliminary tasks:
- Remove rear frame for ski bag
- Move backrest forwards







Lever out welt of backrest cover with special tool 00 9 317 from around backrest frame.

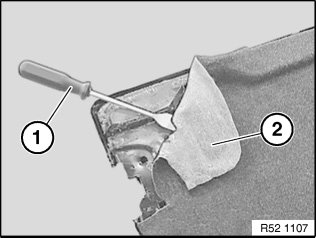

Detach rear panel (2) with flat scraper (1) from rear seat back.

Installation:
Comply with instructions issued by manufacturer of universal spray adhesive.

Apply universal spray adhesive to rear panel and rear seat back.

Fit and align rear panel within the air drying time (see manufacturer's instructions).

Observe and adhere to curing time to prevent rear panels from slipping.
