52 26 033 Removing and Installing/Replacing Cover Upper Section on Armrest For Rear Seat Backrest



52 26 033 Removing And Installing/Replacing Cover Upper Section On Armrest For Rear Seat Backrest







Necessary preliminary tasks:
- Remove armrest for rear seat backrest

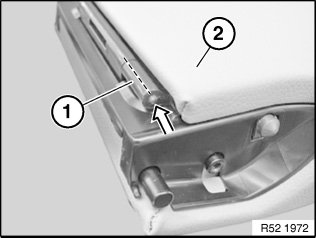

Drive out split pin (1) on left and right.

Remove cover (2) for centre armrest.
