52 26 012 Removing and Installing/Replacing Backrest For Right Rear Seat (Through-Loading Facility)



52 26 012 Removing And Installing/Replacing Backrest For Right Rear Seat (Through-Loading Facility)







Necessary preliminary tasks:
- Remove backrest side section.
- Remove rear seat.







Right backrest:

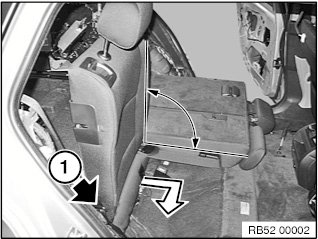

- Release screw (1).

Tightening torque 52 26 01AZ.

- Fold left backrest completely forwards.
- Tip right backrest to 90° with left backrest.
- Pull backrest forwards and outwards out of centre mount in direction of arrow.
