52 24 388 Removing and Installing/Replacing Rear Middle Head Restraint



52 24 388 Removing And Installing/Replacing Rear Middle Head Restraint

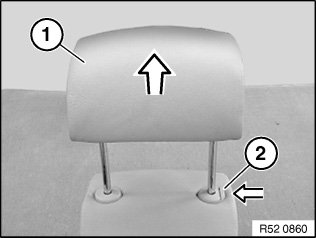

Fold back head restraint (1) and move upwards to max. extent.

Press lock (2) and pull out head restraint.
