52 24 080 Removing and Installing/Replacing Drink Holder In Rear Centre Armrest



52 24 080 Removing And Installing/Replacing Drink Holder In Rear Centre Armrest







Necessary preliminary tasks:
- Remove Armrest for rear seat

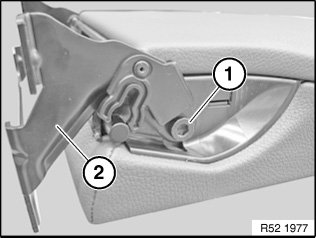

Release screw (1).

Tightening torque 52 24 03AZ.

Remove support structure (2) of centre armrest.







Drive out split pin (1) on left and right.

Remove cover (2) for centre armrest.

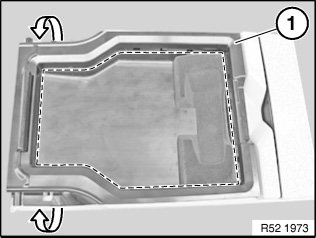

Unclip trim (1) from centre armrest cover in the marked area.







Installation:

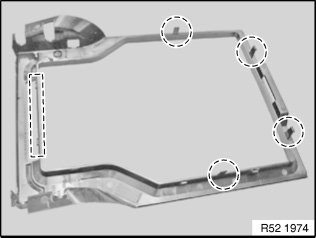

Retaining lugs must not be damaged.

Replace defective trim for centre armrest cover.

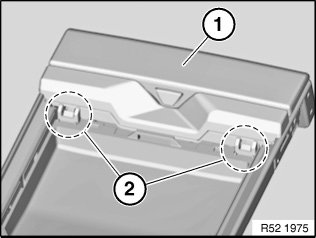

Unclip drink holder (1) in the marked area (2).

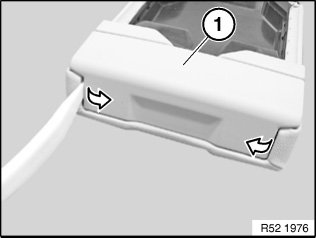

Lever out left and right drink holders (1) from centre armrest with plastic wedge.
