52 24 030 Removing and Installing Complete Armrest For Rear Seat Backrest

52 24 030 Removing And Installing Complete Armrest For Rear Seat Backrest

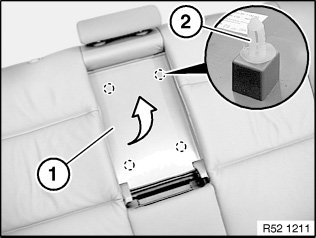

Unclip cover (1) towards front.

Installation:
Replace faulty clips (2).

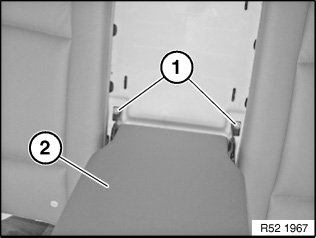

Release screws (1).

Tightening torque: 52 24 5AZ.

Remove armrest (2) with support structure upwards
