52 24 005 Removing and Installing / Replacing Rear Seat

52 24 005 Removing And Installing / Replacing Rear Seat

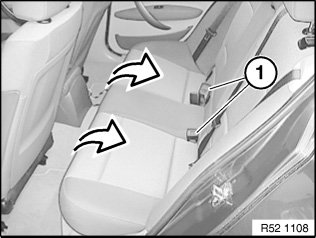

Unclip rear seat on left and right towards top.

Installation:
Feed seat belt buckles (1) into openings in rear seat.

Make sure Isofix protective caps are correctly engaged.







For seat heating optional extra only:

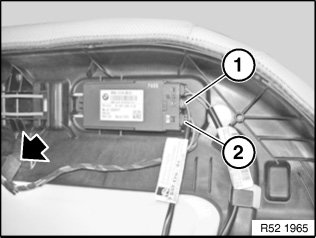

Unlock and disconnect plug connections(1) for backrest heater left and right.
Unlock plug connection (2) on left and right and disconnect.
Unclip cable clip from seat frame.
