54 12 499 Replacing Seal For Glass Slide/Tilt Sunroof Frame

54 12 499 Replacing Seal For Glass Slide/Tilt Sunroof Frame







Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof (frame)

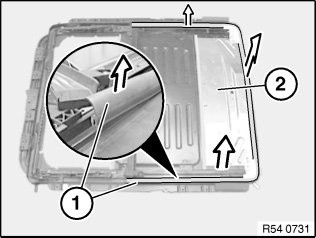

Detach seal (1) from slide/tilt sunroof (2).

Installation:
Groove of seal must point outwards.

Place seal gently in position and align limit points parallel to each other.

Press seal (1) firmly on frame (2) and ensure correct seating.
