61 31 334 Removing and Installing or Replacing Grip Trim For Gear Selector Switch



61 31 334 Removing And Installing Or Replacing Grip Trim For Gear Selector Switch







Special tools required:
- 00 9 322

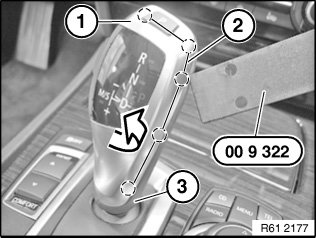

Carefully unclip knob cover (1) using special tool 00 9 322 on points (2) from gear selector switch (3) and remove in the direction of arrow.







Installation:

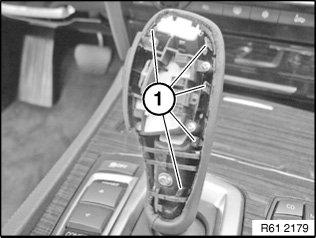

Catches (1) must not be damaged during removal.







Installation:
Engagement lugs (1) and guide (2) must not be damaged.
