51 16 161 Replacing Centre Console Cover



51 16 161 Replacing Centre Console Cover







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary Work:
- Modify centre console cover
- Modify front controller.
- Modify centre console operating facility
- Manual gearbox versions only:
- Modify parking brake switch

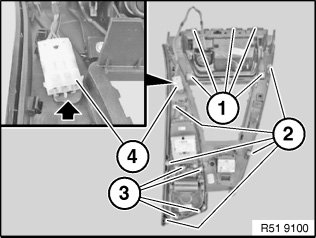

NOTE: Graphic shows centre console cover for manual gearbox.







Undo screws from oddments tray, ashtray and cupholder (1) and (3).

Modify oddments tray, ashtray and cupholder.

Modify retaining clips (2).

Installation note:
- Correctly lock plug connection (4) of cigarette lighter again.
