51 47 316 Removing and Installing/Replacing Carpet For Rear Passenger Compartment

51 47 316 Removing and installing/replacing carpet for rear passenger compartment







Necessary preliminary tasks:
- Clamp off battery lead from negative connection point
- Remove both front seats
- Remove rear seat
- Remove trim panel for door post, bottom left/right
- Remove complete centre console
- Remove cover for central bass speaker left/right

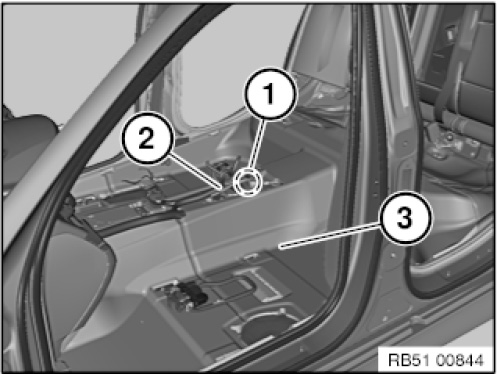

Release nut (1) and remove cable (2) from carpet (3).
Feed out carpet (3) to rear/top.







Installation note:

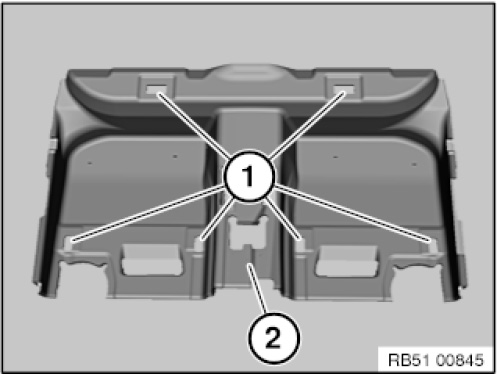

Apertures (1) serve as alignment points when fitting carpet (2).
