51 71 015 Removing and Installing/Replacing Left or Right Underbody Panels

51 71 015 Removing and installing/replacing left or right underbody panelling

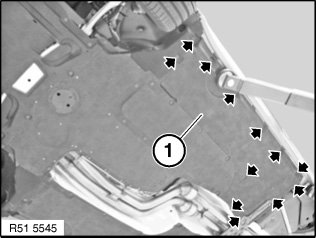

Graphic is only an example. There may be differences in specific details depending on engine model.





Unscrew all bolts.

Remove underbody panelling (1).

Installation note:
Make sure underbody panelling (1) is correctly seated.
