51 14 111 Replacing Model Name Plate, Rear

51 14 111 Replacing Model Name Plate, Rear







IMPORTANT: The Instructions for adhering badge emblem serve as the basis for these repair instructions and must be followed without fail.

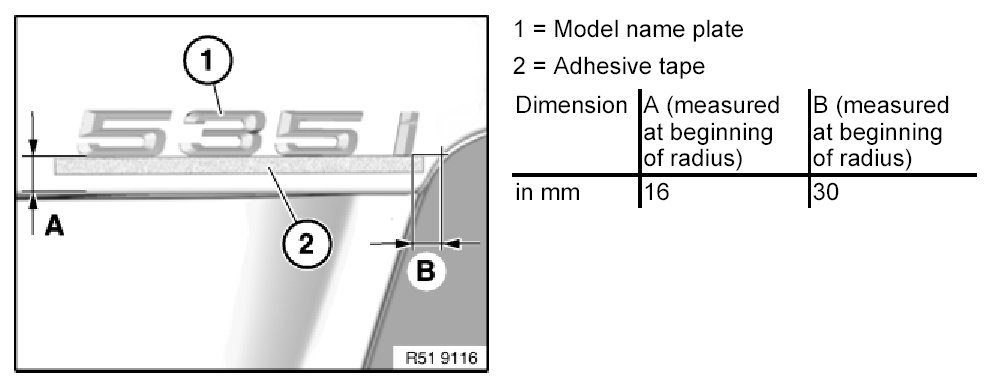

Attach the upper edge of the adhesive tape (2) horizontally to the rear window edge with an offset to the top by dimension "A".
Mark distance "B" on adhesive tape (2).
Secure the model inscription (1) as follows:
- Lower edge of model inscription (1) with upper edge of adhesive tape (2)
- Outer lower corner of model inscription (1) with mark on adhesive tape (2)

Apply model inscription (1).
Remove adhesive tape (2).
