Hood Latch Release: Service and Repair

51 23 201 Removing And Installing/Replacing Release Mechanism For Retaining Hook On Engine Compartment Lid

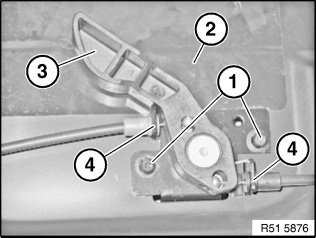

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

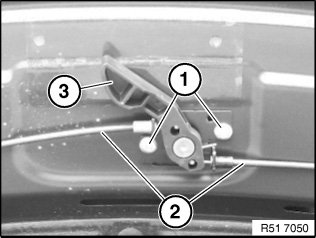

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).
